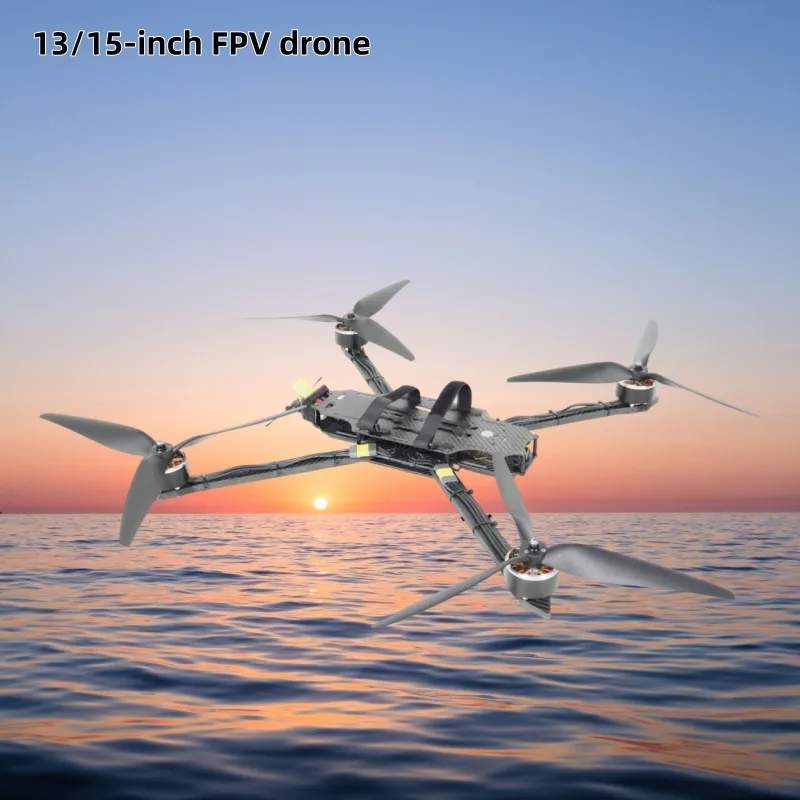

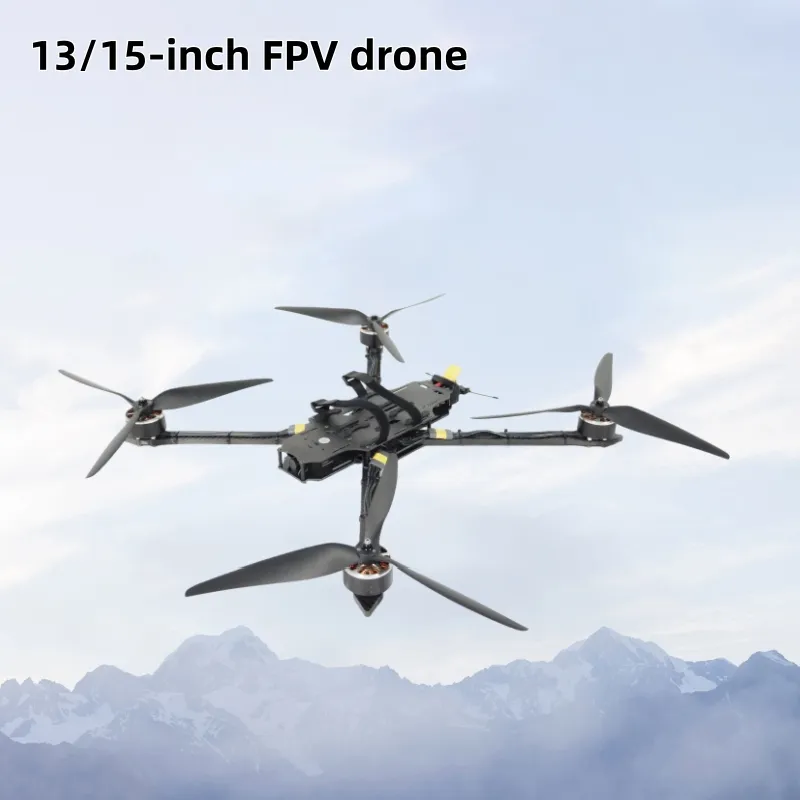

Heavy-Load FPV Industrial Drone | 10 / 13 / 15-Inch Frame | 3–8 kg Payload | 15–20 km Flight Range
Product Overview
This Heavy-Load FPV drone is a powerful industrial-grade quadcopter designed for demanding aerial missions. Built with modular 10”, 13”, and 15” frame options, it delivers exceptional performance in long-range operations while carrying significant payloads of 3 kg up to 8 kg. Its extended flight range of up to 15–20 km and stable FPV control make it ideal for commercial, surveying, mapping, inspection, and logistics applications.
Key Features
Heavy Payload Capacity
Equipped to handle 3 kg to 8 kg payloads, this drone supports a wide range of external modules such as cameras, LiDAR, thermal sensors, spray systems, or delivery packs — meeting the needs of industrial and commercial applications.
Long-Range Flight Performance
Designed for extended missions, the drone achieves a flight distance up to 15–20 km, providing reliable long-range operation and FPV live transmission for real-time control and data acquisition.
Multiple Frame Options
Choose from 10”, 13”, or 15” versions to tailor lift capacity and agility. Larger frames support heavier loads and greater stability, while smaller configurations offer greater maneuverability.

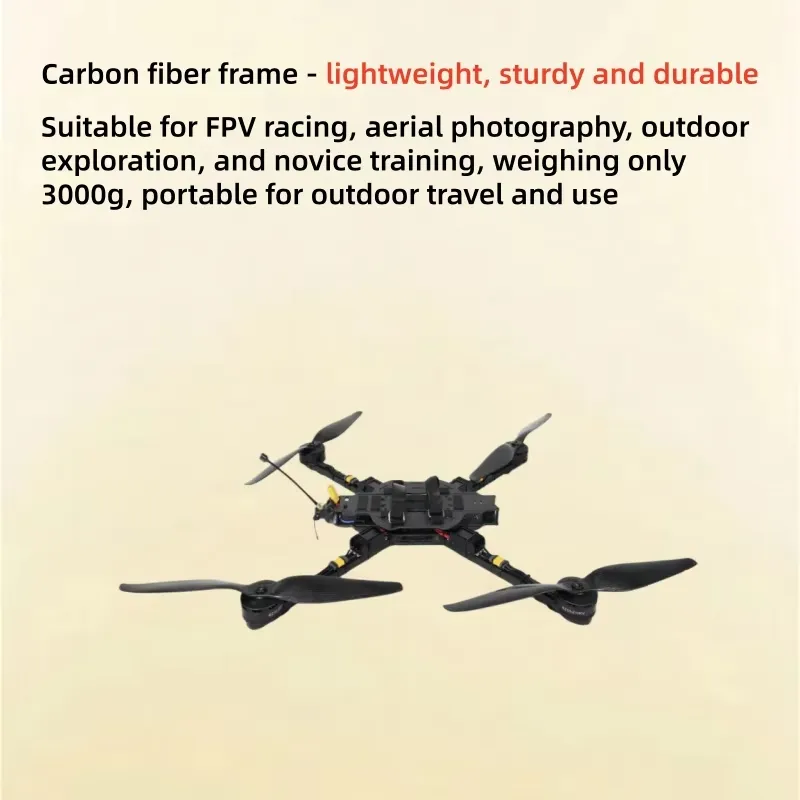

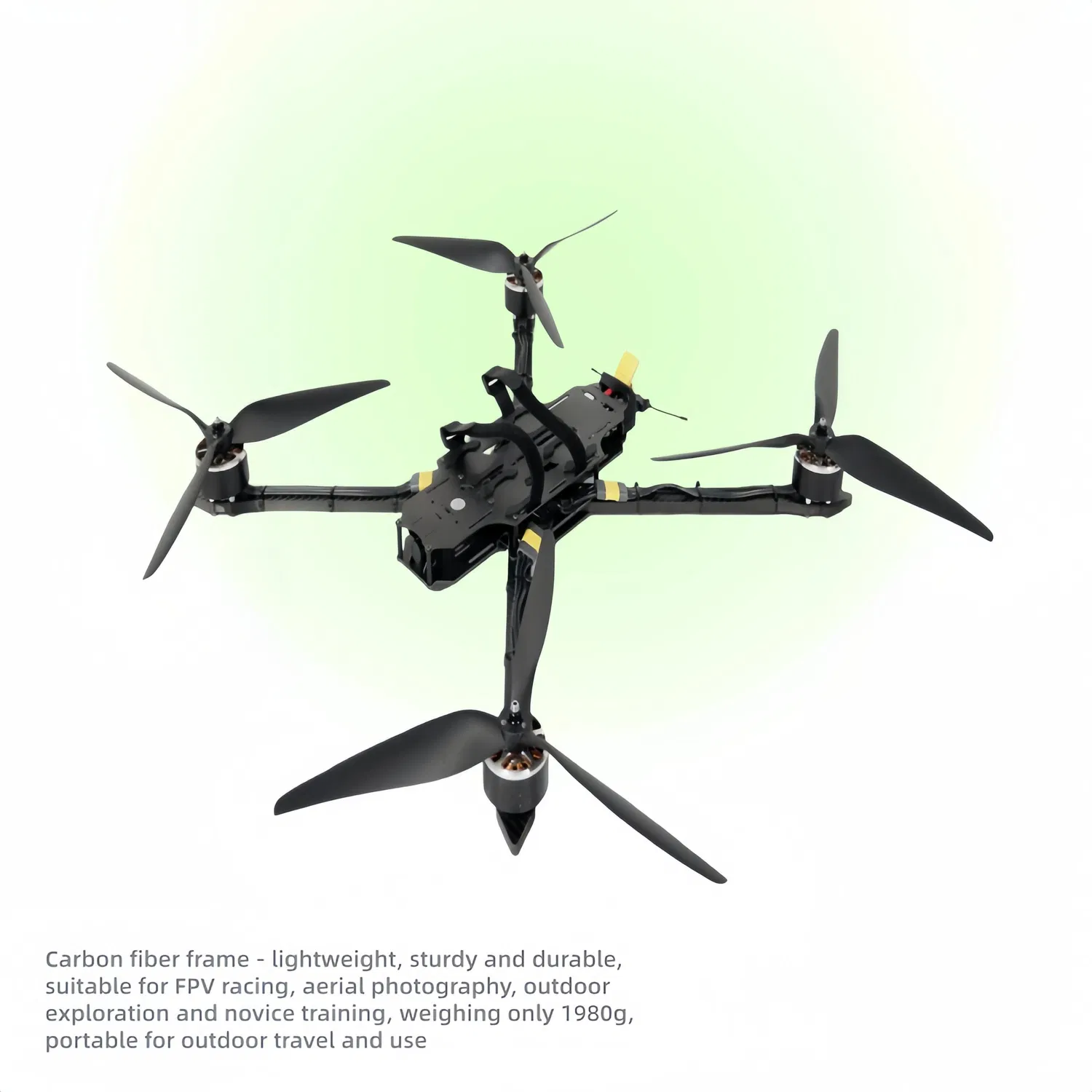

All-Weather, Industrial-Grade Build
Constructed with high-strength carbon fiber and professional flight electronics, this drone ensures durable performance in various environments, from industrial worksites to remote areas.

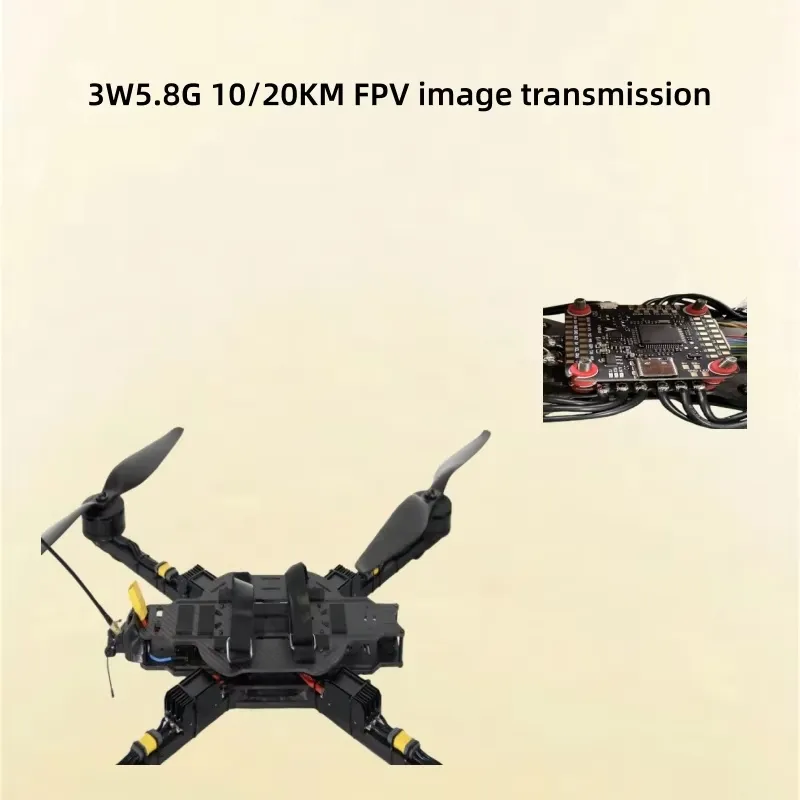

FPV & Remote Control Ready
Equipped with first-person view (FPV) capability and robust remote control systems, operators enjoy responsive control, clear transmission, and precise handling — crucial for complex aerial tasks.
| Specification | Details |
|---|---|
| Model | ZTK-10/13/15 |
| Frame Size | 10 in / 13 in / 15 in |
| Payload Capacity | 3 kg – 8 kg |
| Max Flight Distance | Up to 15–20 km |
| Max Hovering Time | ~30–40 min |
| Max Altitude | Up to 7000 m |
| Control Type | Remote / FPV |
| Material | Carbon Fiber |
| ESC | 80A 4-in-1 |

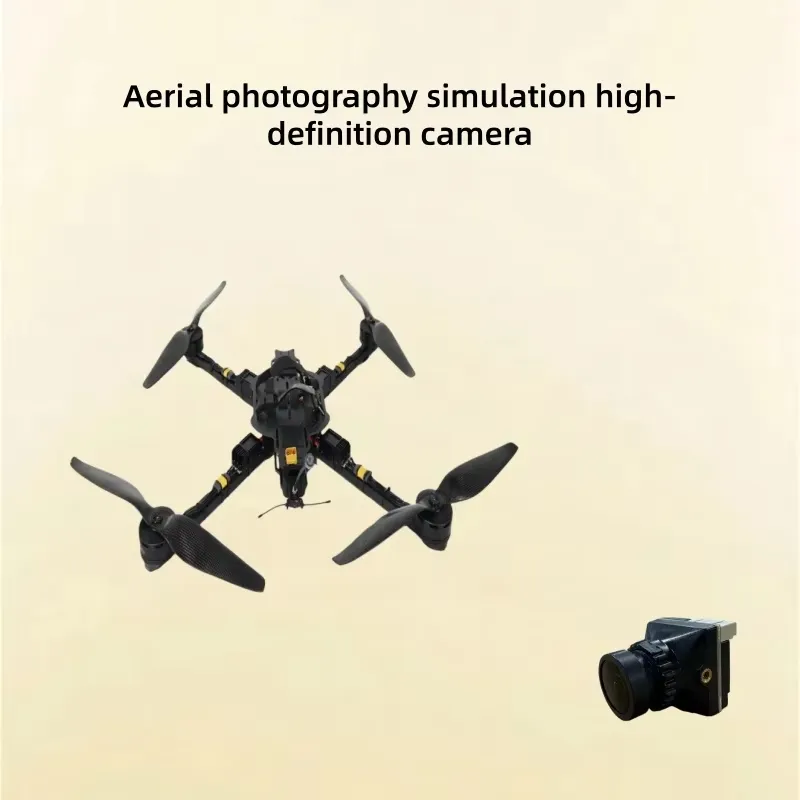

| Camera Support | Mini FPV camera compatible |
| OEM/ODM | Supported |
| Origin | China |
| Monthly Capacity | ~1000 pieces/month |
Typical Applications
Industrial Inspection & Monitoring
Mapping & Surveying Missions
Aerial Photography & Filming
Agricultural Support & Spraying
Delivery & Logistics Payloads
Emergency Response & Search Operations

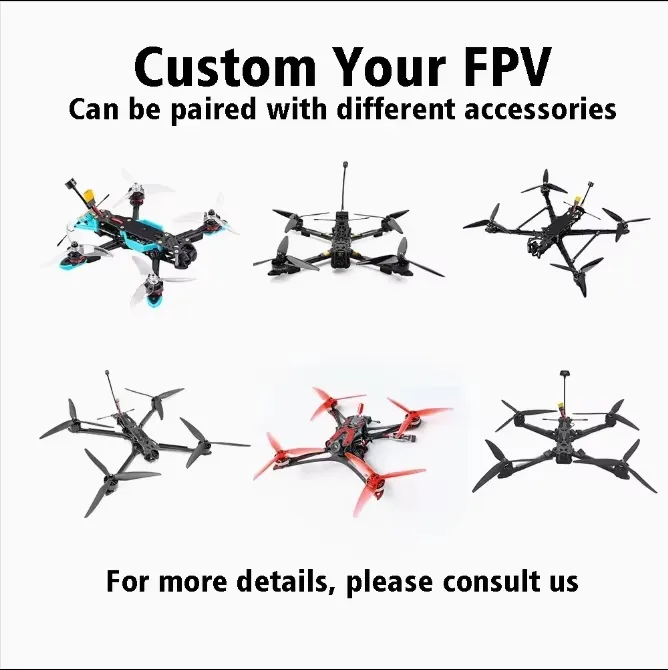

Customization & Support
We offer full OEM/ODM customization — including payload integration, custom colors/logos, telemetry options, and payload bay configurations — to suit your unique project requirements.
Why Choose This Drone?
-
High Payload Efficiency: Excellent lift capacity for professional tools or cargo.
-
Extended Range: Long-distance flight capabilities expand operational reach.
-
FPV Precision Control: Clear first-person view for accurate piloting.
-
Industrial Strength: Designed for reliability and rugged performance.
-
Customization Available: Support for tailored solutions and bulk orders
